- Equipped with an internal voltage-dependent resistor (MOV).
- Supports a maximum power of 3 A.
- Output during locking and NC output during unlocking.
- Operating temperature: -10°C to +55°C.
- Operating humidity 0 to 95% (relative humidity).
We will carefully read your message and reply you as soon as possible.
1. Magnetic Lock,special used to Wooden door, Glass door, Metal door, etc
2.Saves time and power when installation
3.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
4.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
5.Aluminum alloy material is very durable.
6.Electromagnetic suction work completely, there is no mechanical failure.
7.Shell with high strength alloy material, anode hardening treatment.

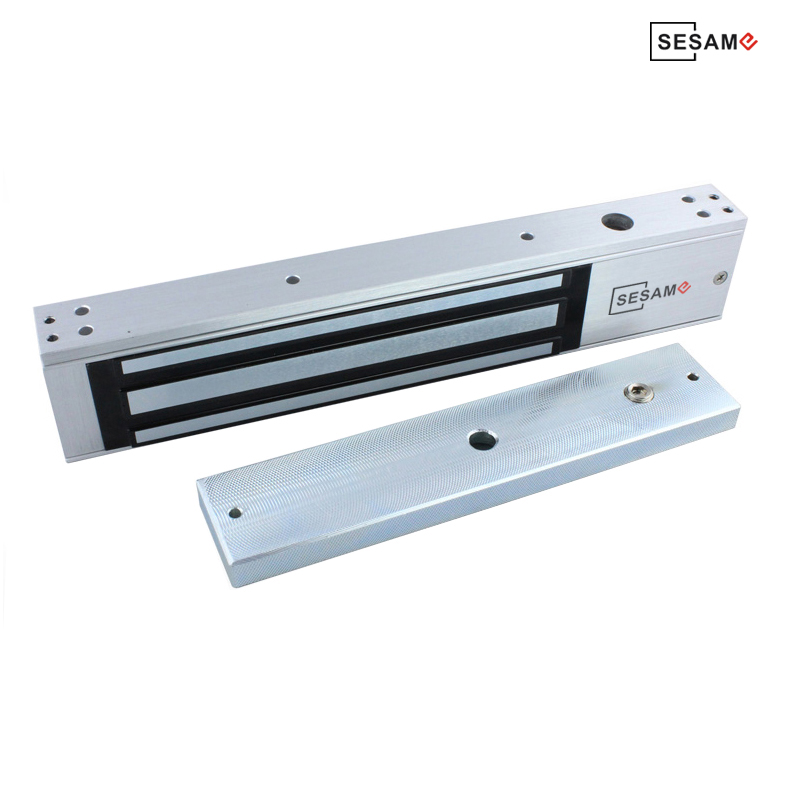

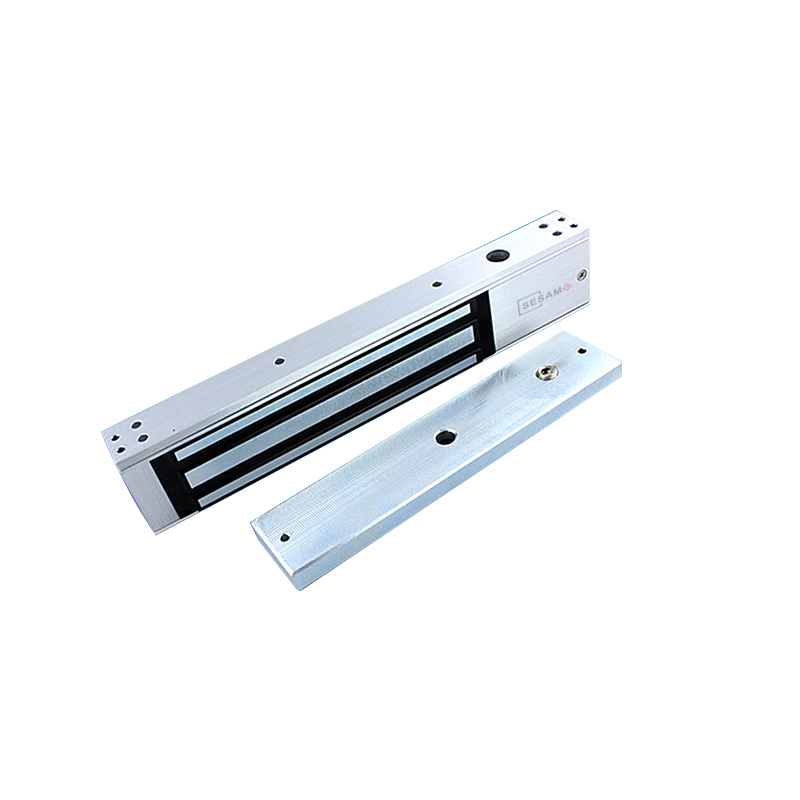

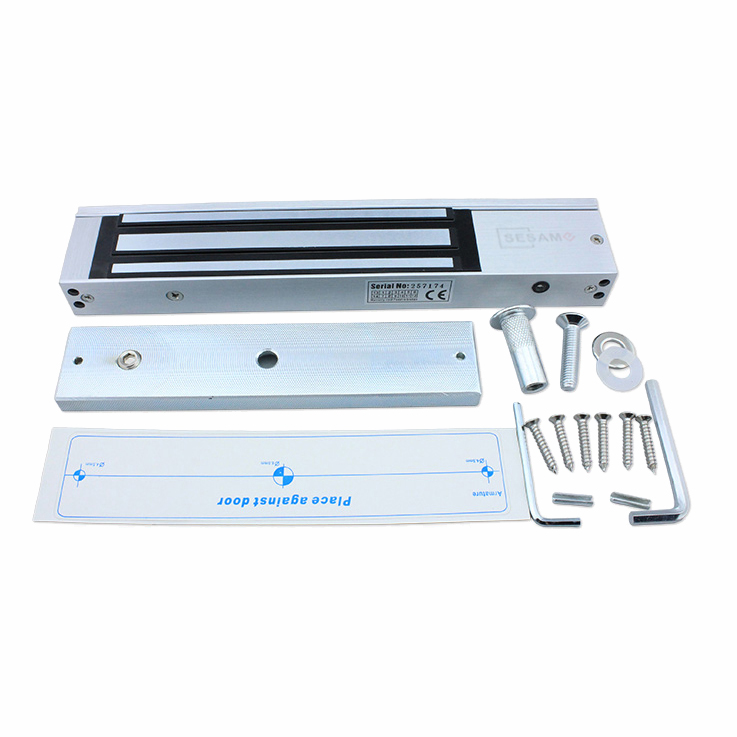

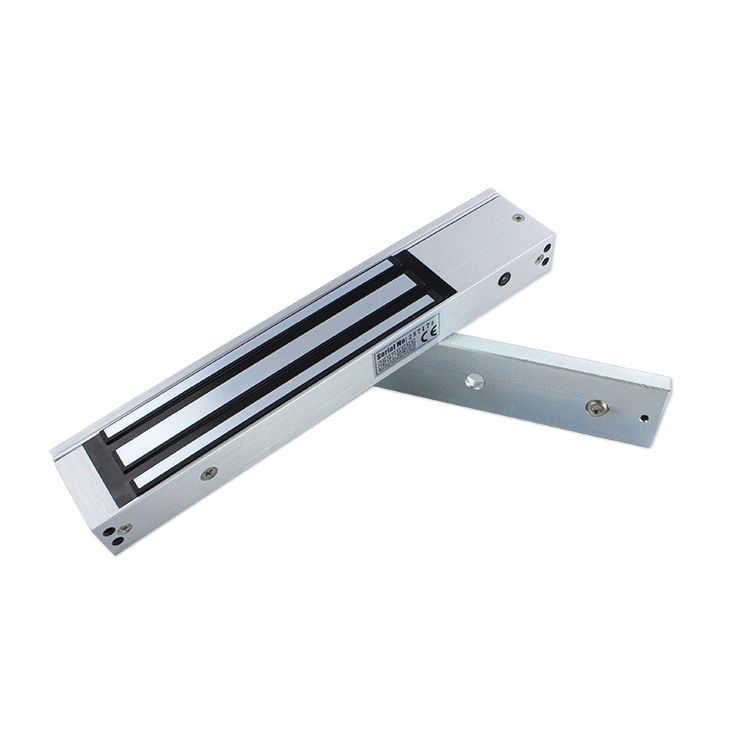

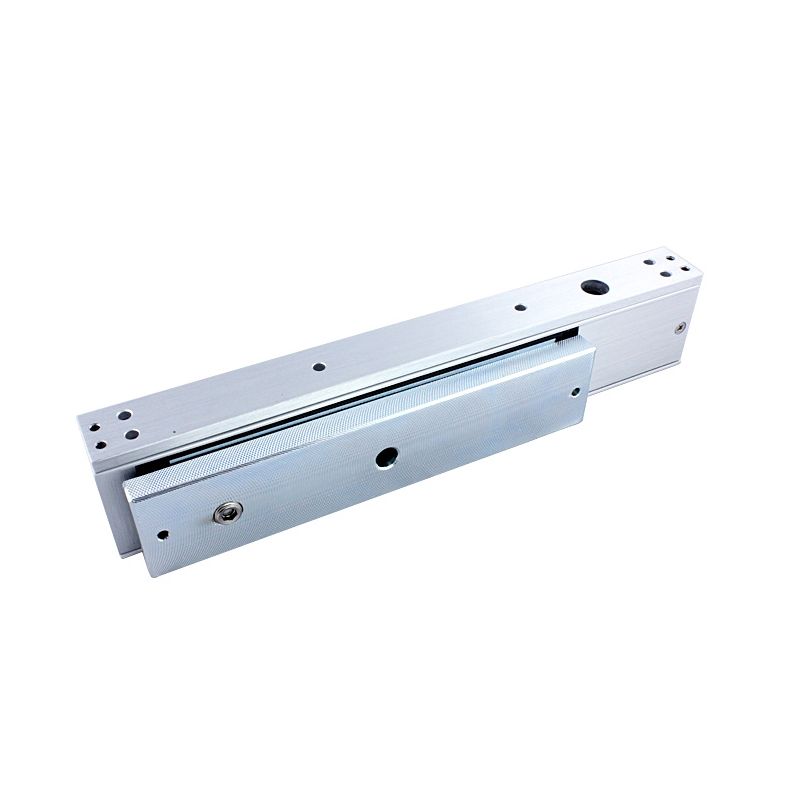

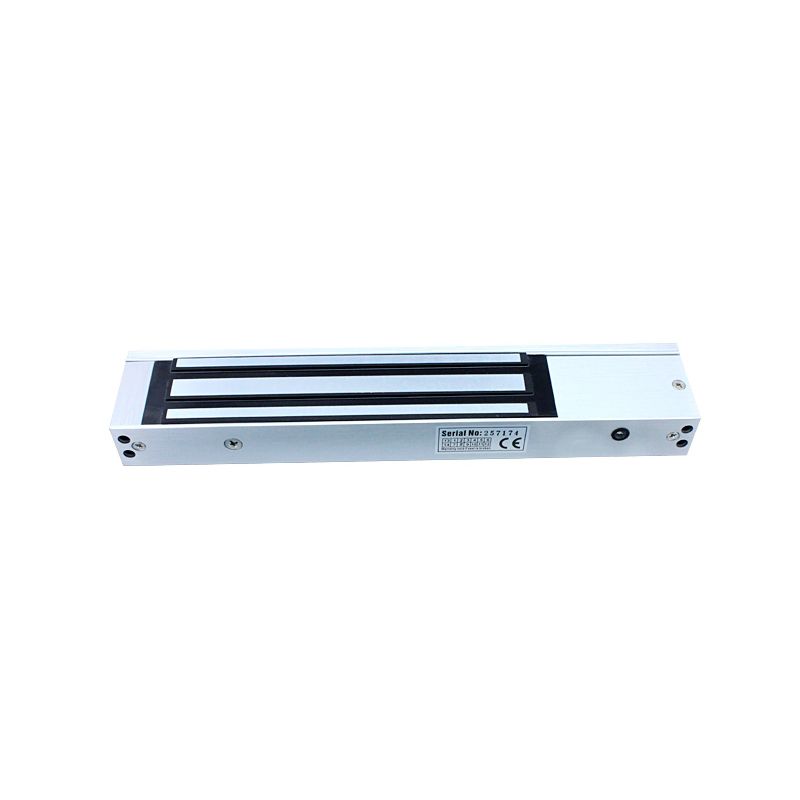

Magnetic Lock, Surface Mounted, Signal Output (Monitored)
- Equipped with an internal voltage-dependent resistor (MOV).
- Supports a maximum power of 3 A.
- Output during locking and NC output during unlocking.
- Operating temperature: -10°C to +55°C.
- Operating humidity 0 to 95% (relative humidity).
Case: Aluminum alloy
Size: 285*49*25(mm )
Suitable for : Wooden door, Glass door, Metal door, etc
Power on to lock,Status signal NO/NC output
Holding force: 350kg(800lb)
Current Draw:12V 480mA
Weight: 2.7kg LED (Red)
SM-350-S: Signal Output(Monitored) LED (Red locked)
SM-350-T: 0,3,6,9 secs Delay
SM-350-ST:Signal Output, LED, 0,3,6,9 secs Delay
